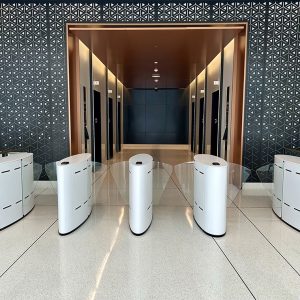

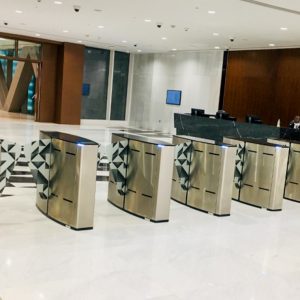

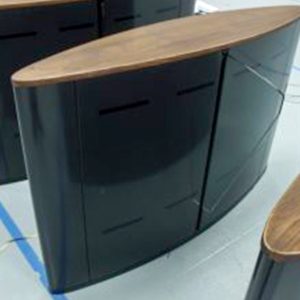

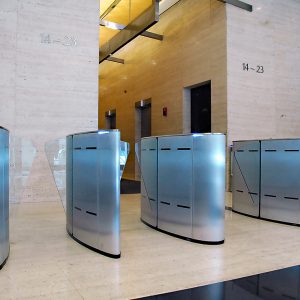

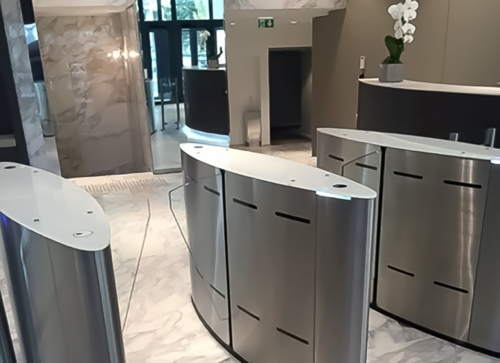

Fastlane Glasswing
Fast-acting “angel wing” glass barriers retract fully into the pedestals upon authorization.
Specifications
Pedestal dimensions — standard & ADA
Height: 36.5”
Length Compact elliptical ends: 59.1”
Length Compact square ends: 49.3”
Length Standard elliptical ends: 59.1”
Length Standard square ends: 49.3”
Length Wide elliptical ends: 59.1”
Length Wide square ends: 49.3”
Barrier glass dimensions
Narrow: 9.84”
Standard: 12.4”
Wide: 16”
Lane width
Narrow: 21.7”
Standard: 26”
Wide: 36”
Available end panels
Elliptical
Square
Options & accessories
Fastlane Technical Services
Fastlane Floor Protector
Fastlane Infill System
Multiple desktop controls (IP or analog)
FastScan™
Multiple reader mounting options
Locking barriers
