Description
SPEED GATE

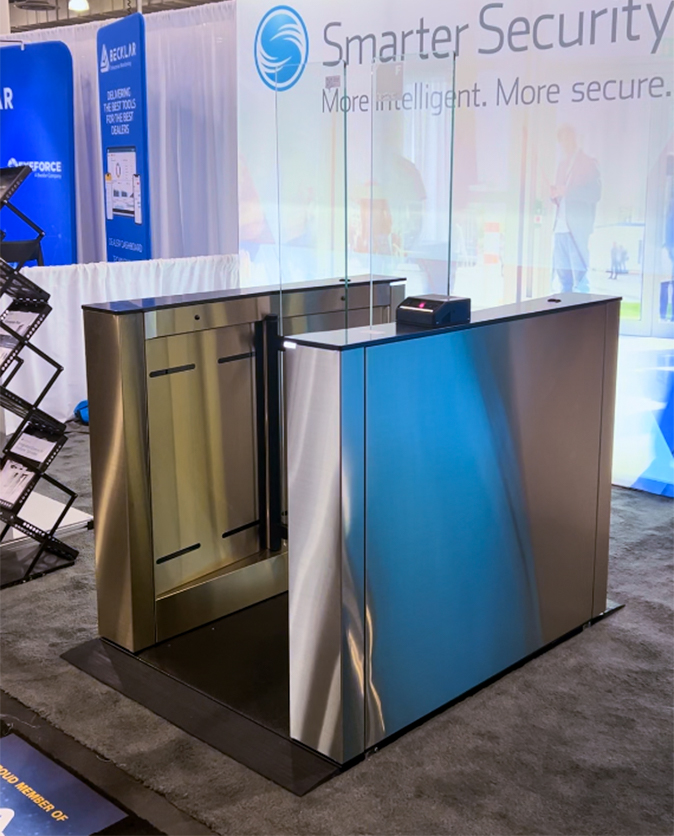

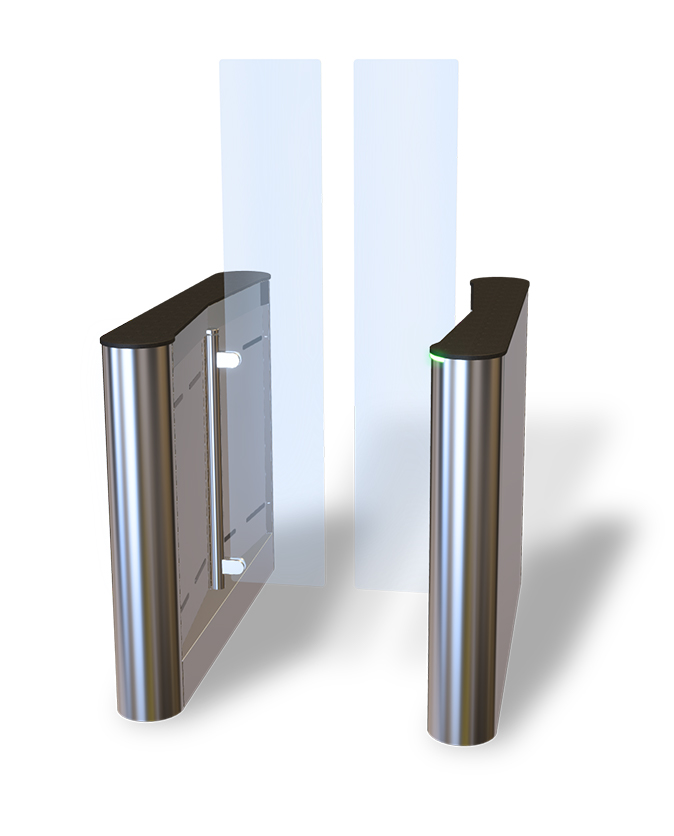

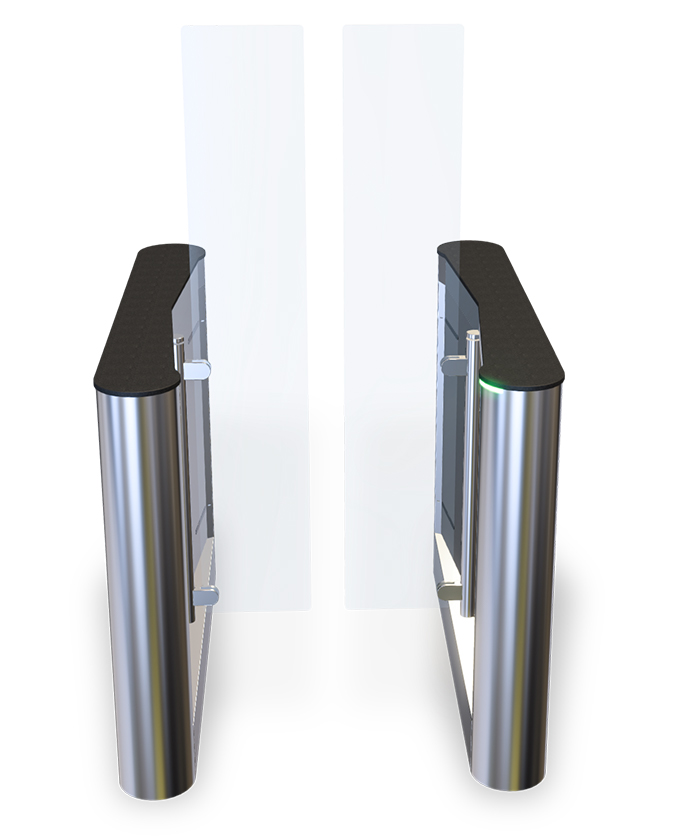

Fastlane Glassgate 250 Plus
The Fastlane Glassgate 250 Plus is a versatile turnstile solution that integrates with elevator displays and supports various reader technologies, featuring adjustable glass barrier heights up to 66.9 inches.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems
- Locking brake option
Elevating Entrance Control
The Fastlane Glassgate 250 Plus turnstile is meticulously crafted to offer an elegant entrance control solution. It seamlessly integrates with elevator displays and supports various reader technologies. With adjustable glass barrier heights ranging from pedestal height to 66.9” tall, the GG250 Plus caters to diverse security requirements.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Barriers close slowly when safety beams detect an obstruction
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Glassgate 250 Plus |
|---|---|
| Pedestal footprint (L x W x H in inches) | 49.1 x 7.4 x 40 |
| Available lane widths (in inches) | 26.0 / 36.0 (ADA) |
| Barrier heights (in inches) | 40 / 47.2 / 59 / 66.9 |
| Barrier breakaway force | ≥ 60N / ≥ 300N (option) |
| Tailgate detection | 1/4” |
| Weight (Interlane pedestal) | 175.3lbs / 79.5kg |
| Weight (RX/TX pedestal) | 157.6lbs / 71.5kg |
| Barrier Breakaway Force – Friction | ≥ 60N (measured at 285mm from the shaft axis) |
| Maximum Rated Force – Locking brakes | ≥ 300N* (Damage to the Glass clamps and panel may occur above rated force) |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN12150 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only |
| Turnstile Power Specifications | |
| Receive Gate / Transmit Gate | 24Vdc 1.25A (max) |
| Dual Gate Interlane | 2x 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 meter) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
