ACCESS GATE

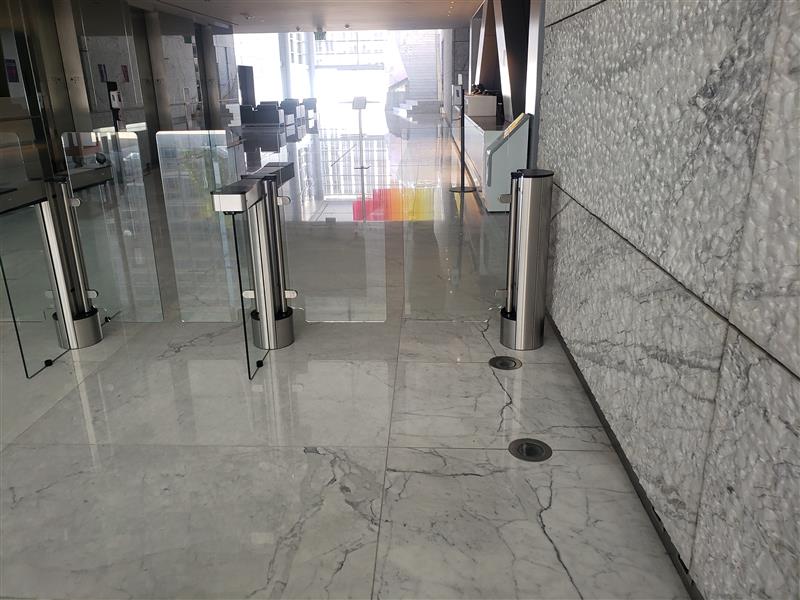

Fastlane Passgate 300
The Passgate 300 unit is a single post, single barrier gate product available in multiple heights and widths to suit a wide range of applications.
- Opens upon authorized command or proper user credentials
- Glass barrier swings in the direction of travel
- Compatible with Access Control, CCTV, and building management systems
The Future of Secure Entrance Control
The Fastlane Passgate 300 delivers an extra-wide motorized entrance with bi-directional swing glass barriers, seamlessly accommodating wheelchairs, mobility devices, and large deliveries. Its precision-engineered design ensures smooth operation while maintaining security, making it the ideal solution for high-traffic areas requiring both accessibility and controlled access.
Advanced Security Technology
The Passgate 300 is a physical deterrent designed to control unauthorized access under staff supervision. Here are three key features:
- Opens upon authorized command or proper user credentials
- Glass barrier swings in the direction of travel
- Configurable open time or manual closure by security staff
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Fastlane Passgate 300 |
|---|---|
| Pedestal footprint (L x W x H in inches) | 9.4 x 38 |
| Available lane widths (in inches) | 23.6 / 27.5 / 39.3 |
| Barrier heights (in inches) | 38 / 47.2 / 59.1 / 66.9 / 70.9 |
| Barrier breakaway force – Friction | ≥ 60N (measured at 285mm from the shaft axis) |
| Maximum rated force – Locking brakes | ≥ 300N* (Damage to the Glass clamps and panel may occur above rated force) |
| Opening/ closing time | 2 – 6 seconds (subject to barrier size) |
| Weight (RX/TX pedestal) | 52.9lbs / 24kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN12150 12mm Toughened/Laminated for 1800mm Tall option EN12150/EN14449 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only) |
| Turnstile Power Specifications | |
| Per Pedestal | 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
|
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 98dB approx. |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
