Description
Dual-barrier

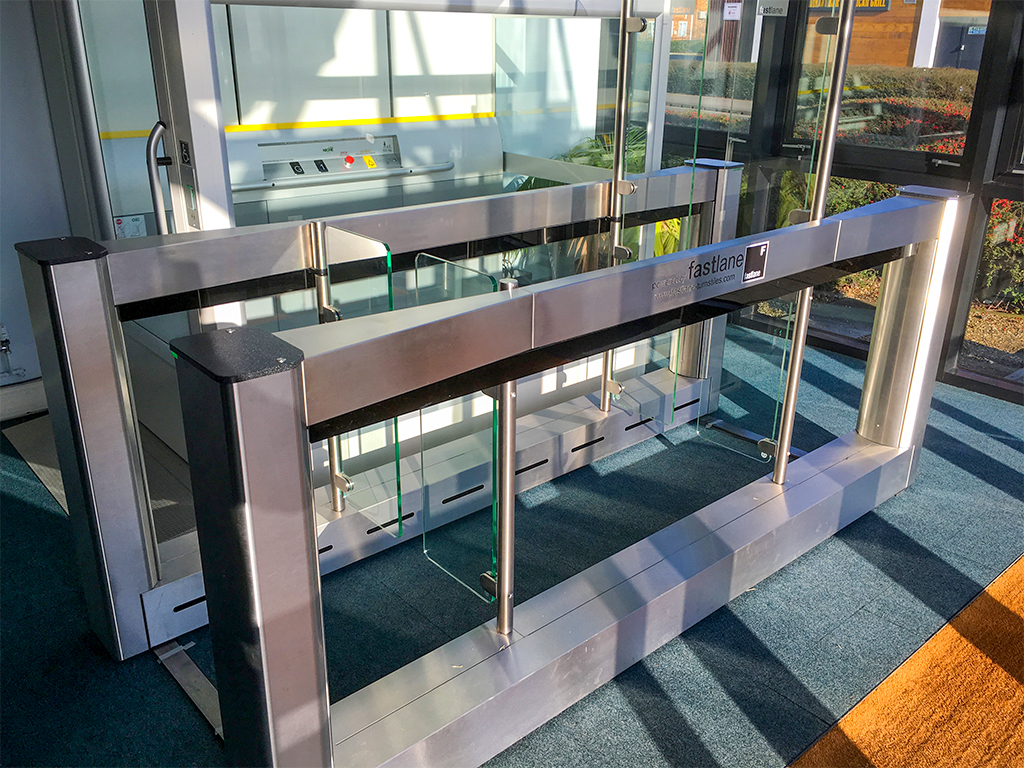

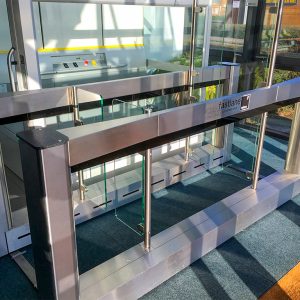

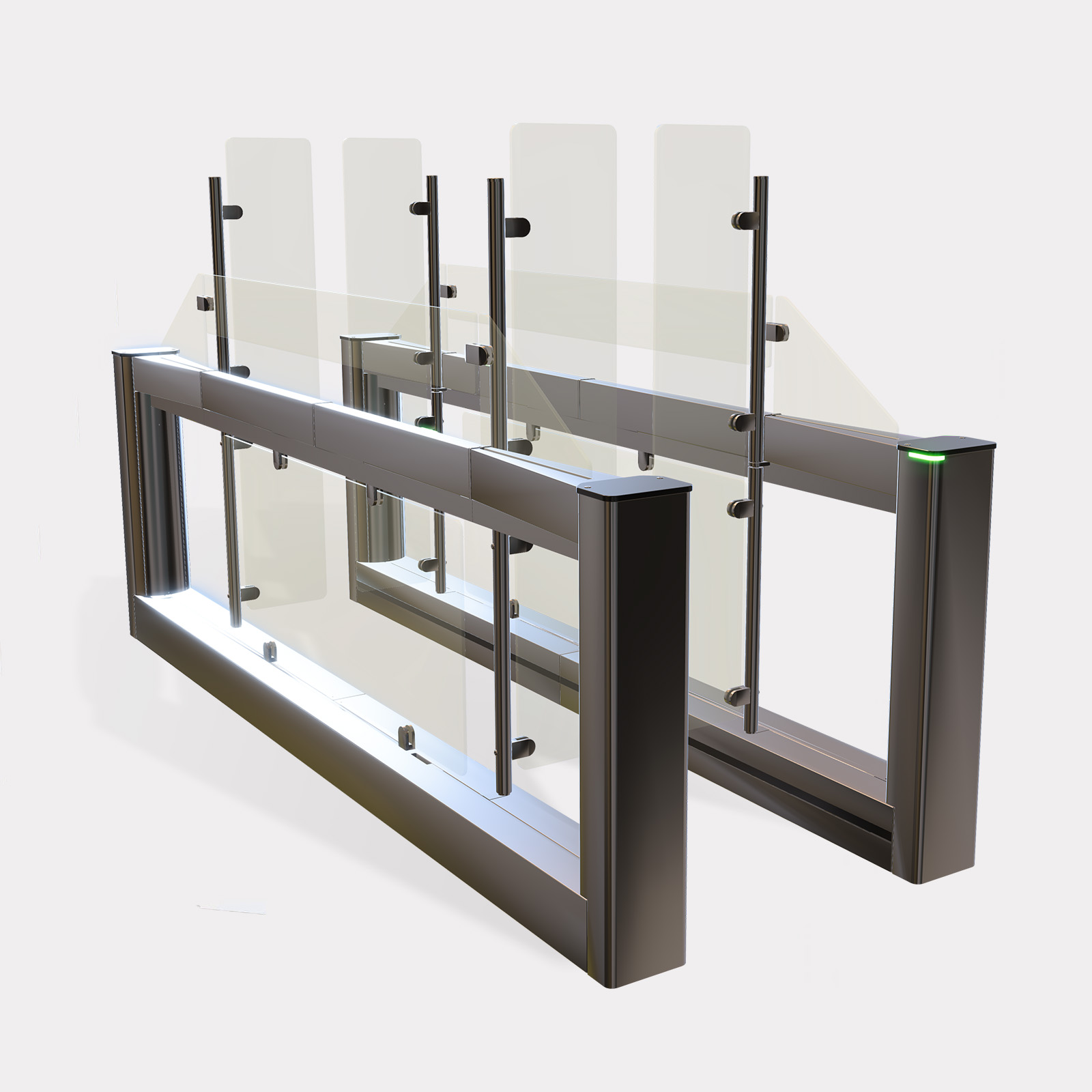

Fastlane Interlock

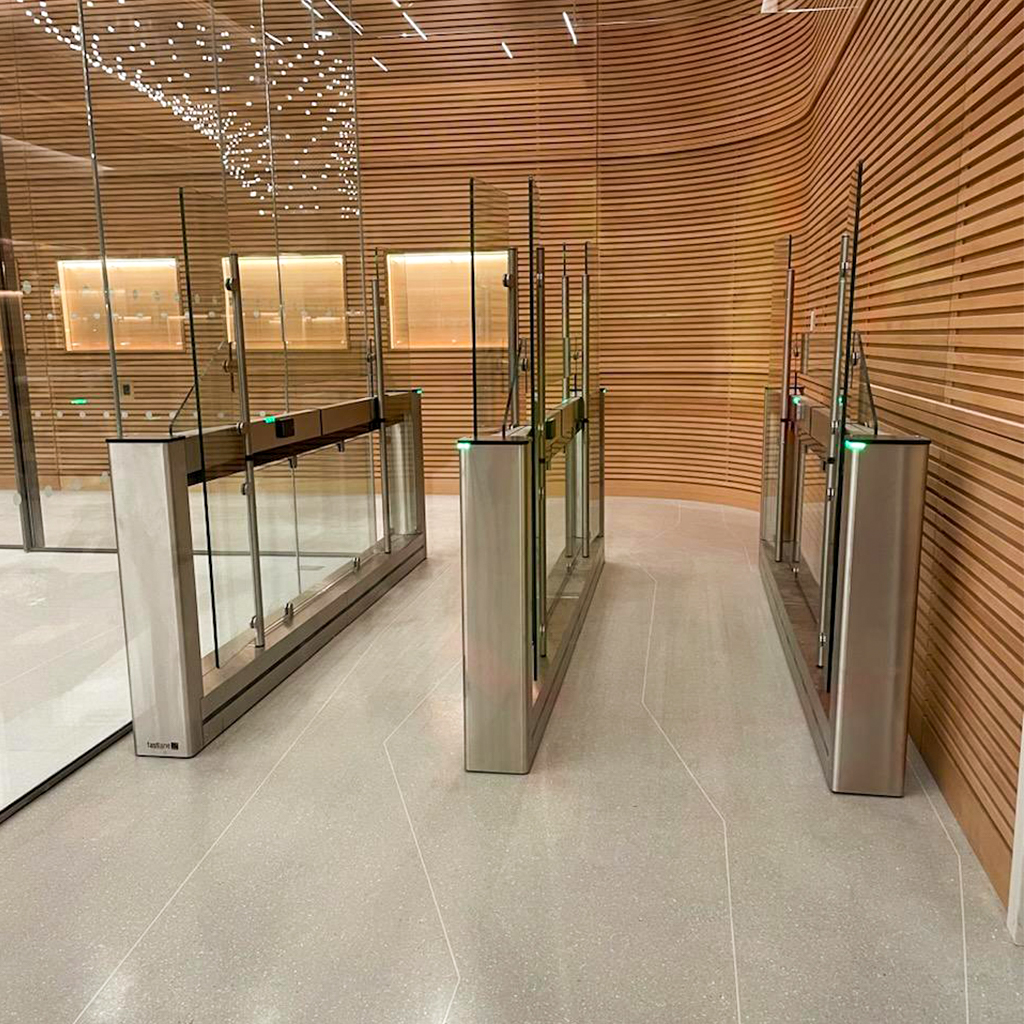

The Fastlane Interlock is a high-security dual-barrier turnstile that prevents unauthorized access and tailgating. Its independently operating barriers and flexible authentication options ensure tight security.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems

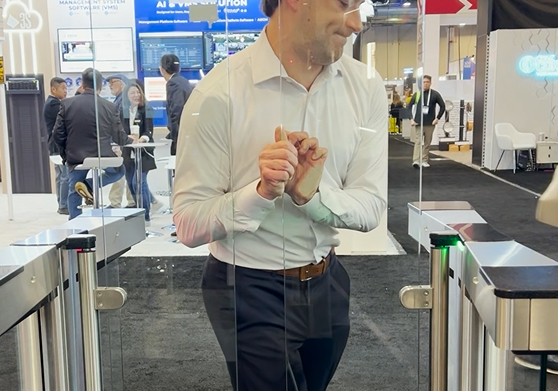

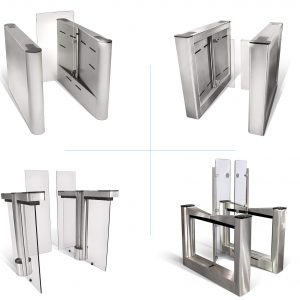

- Locking brake option
High-Security Entry Management
The Fastlane Interlock is a cutting-edge dual-barrier turnstile meticulously crafted for high-security environments. Designed to stop tailgating and unauthorized entry, it offers single or multiple authentication methods to guarantee authorized access and prevent collusion attempts. The dual sets of barriers can be supplied in various heights and operate independently while remaining interlocked, ensuring only one set opens at a time. Its glass door design provides a user-friendly interface that harmonizes functionality with aesthetics.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems

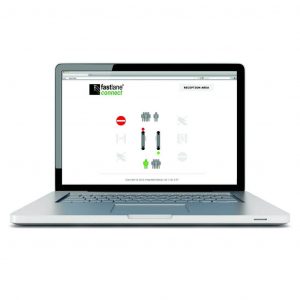

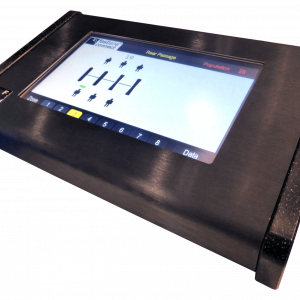

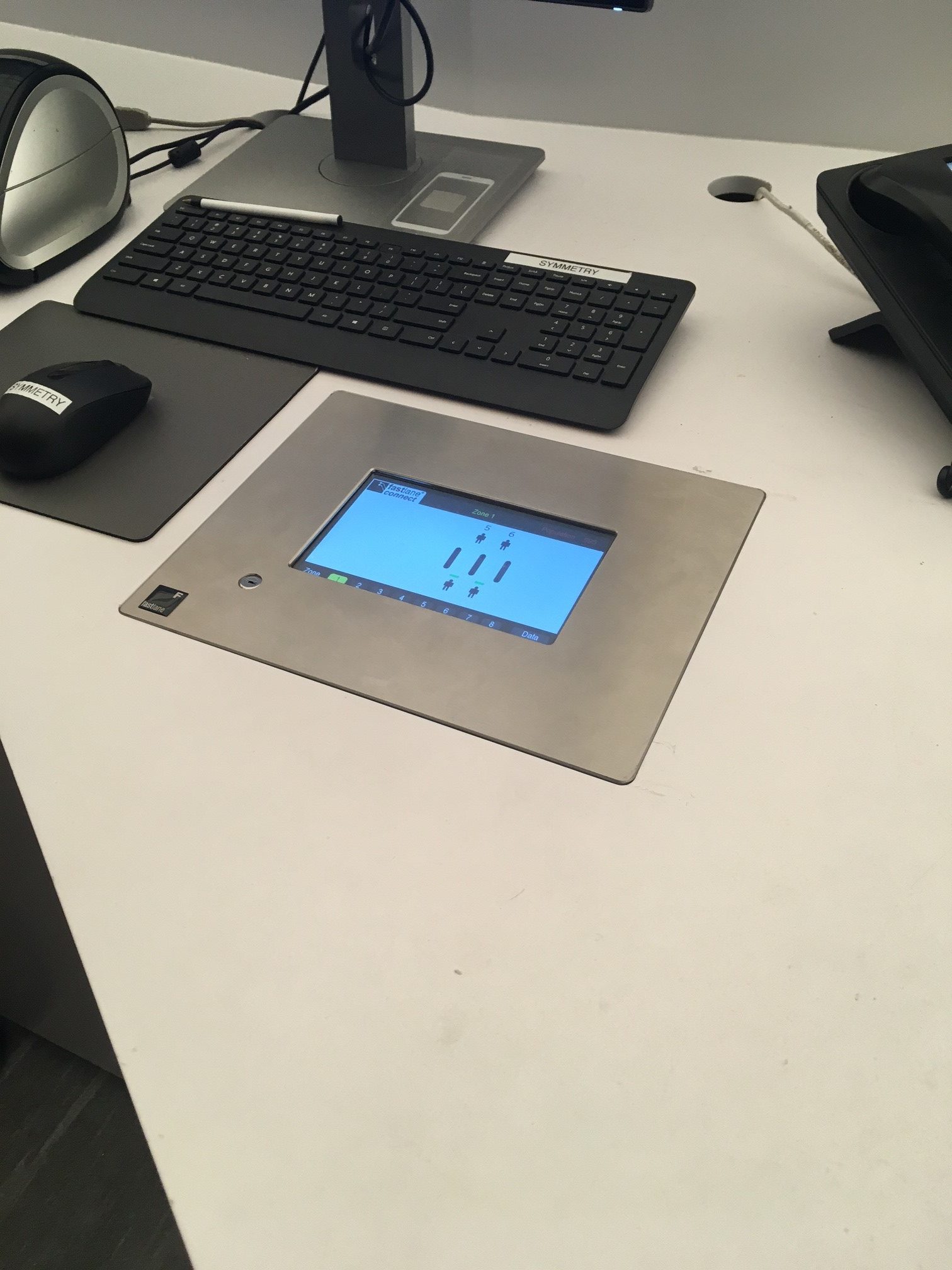

- Fastlane Connect™ ethernet communications for remote control and diagnostics that enable Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller
Operation
Fastlane Interlock is designed to work in a normally closed mode, opening only after an access system approval. The glass barrier swings away from an authorized user. Barriers then either:
- Close quickly behind the authorized person to deter tailgaters
- Efforts to push past the glass barrier will sound a second, louder alarm
- A secondary relay can trigger CCTV, lock doors, or control elevators
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Interlock |
|---|---|
| Pedestal footprint (L x W x H in inches) | 126.3 x 8.6 x 41.8 |
| Available lane widths (in inches) | 26.0 / 36.0 (ADA) |
| Barrier heights (in inches) | 41.8 / 47.2 / 59.1 / 70.9 |
| Barrier breakaway force – Friction brakes | ≥ 120N (measured at 285mm from the shaft axis) |
| Maximum rated force – Locking brakes | ≥ 300N* (Damage to Glass clamps and panel may occur above rated force) |
| Tailgate detection | 1/4” |
| Weight (Interlane pedestal) | 312.5lbs / 142kg |
| Weight (RX/TX pedestal) | 376.2 lbs / 171kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN12150 10mm Toughened Safety Glass (Heat Soaked) to EN14179 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 925kW hours per annum |
| Ingress protection | IP20 (Internal building applications only) |
| Turnstile Power Specifications | |
| Receive Gate | 2 x 24Vdc 1.6A, 1.1A (max) |
| Transmit Gate | 2 x 24Vdc 1.1A, 1.1A (max) |
| Dual Gate Interlane | 4 x 24Vdc 1.6A, 1.1A, 1.1A, 1.1A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 12” x 3” x 5.5” |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs voltage | 4 x 24V @10A max total current |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
IP stage Entry & Exit request (NORMALLY OPEN closing for 1s) |
| Screw terminal connector | AUX1 Stage 2 Entry Request (Normally Open closing for 1s) |
| Max conductor CSA 16AWG/ 1.5mm2 | AUX2 Stage 2 Exit Request (Normally Open closing for 1s) |
| Fire panel integration input | AUX3 Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display – EOL & MOL | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 meter) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
