SPEED GATE

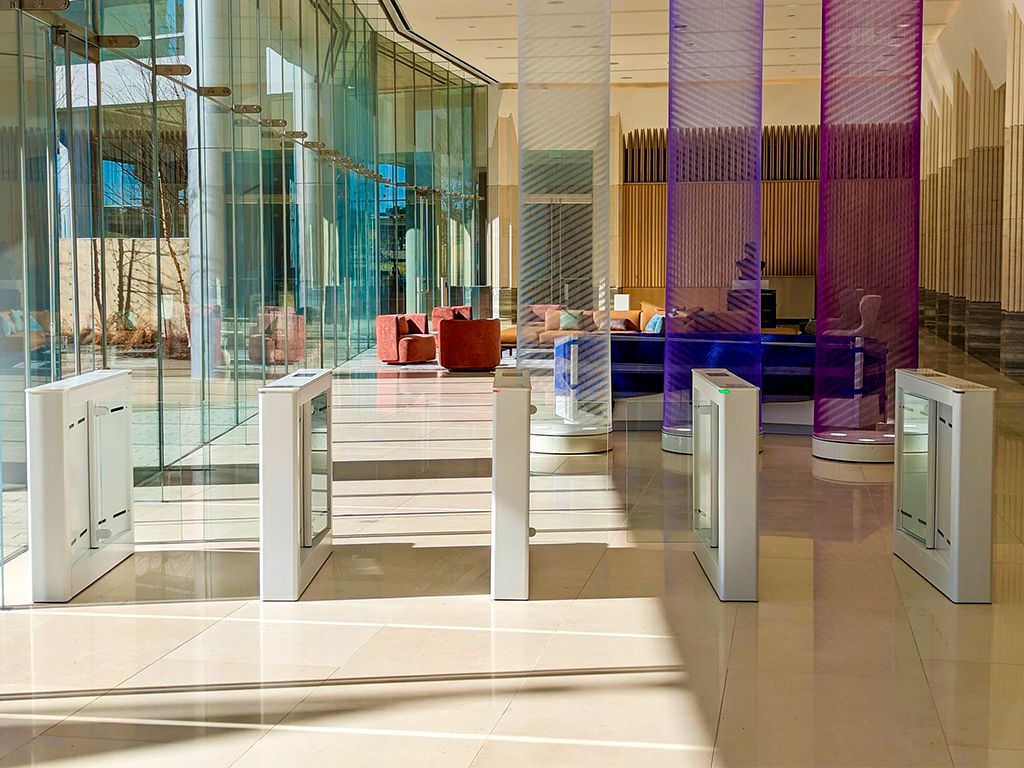

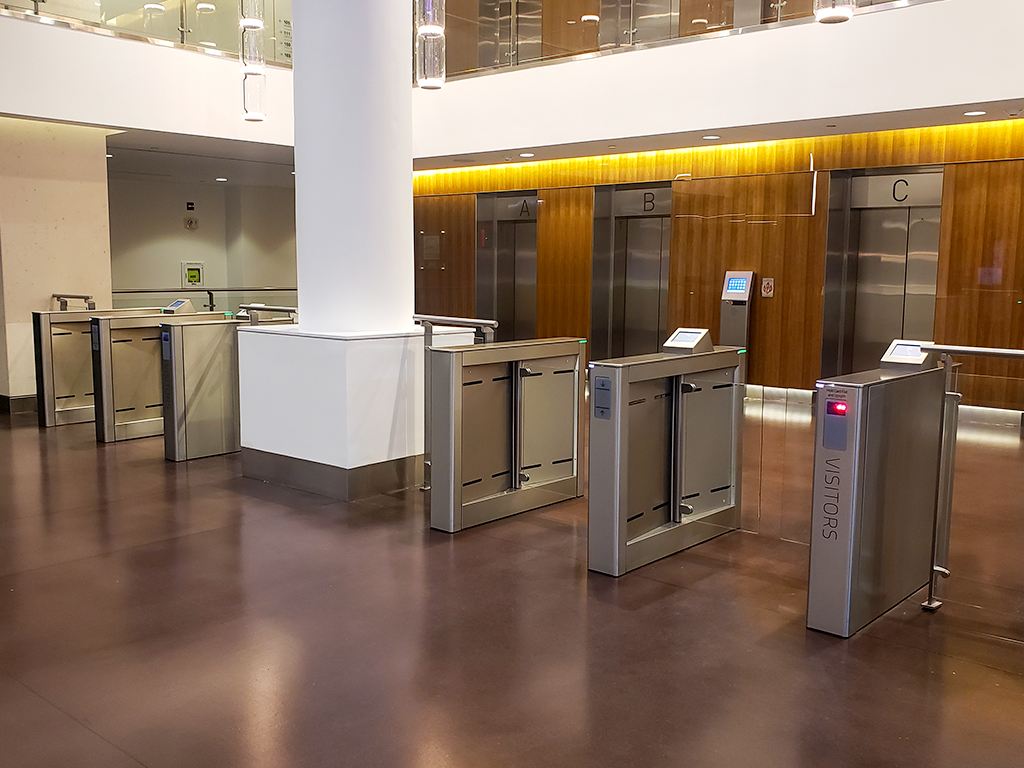

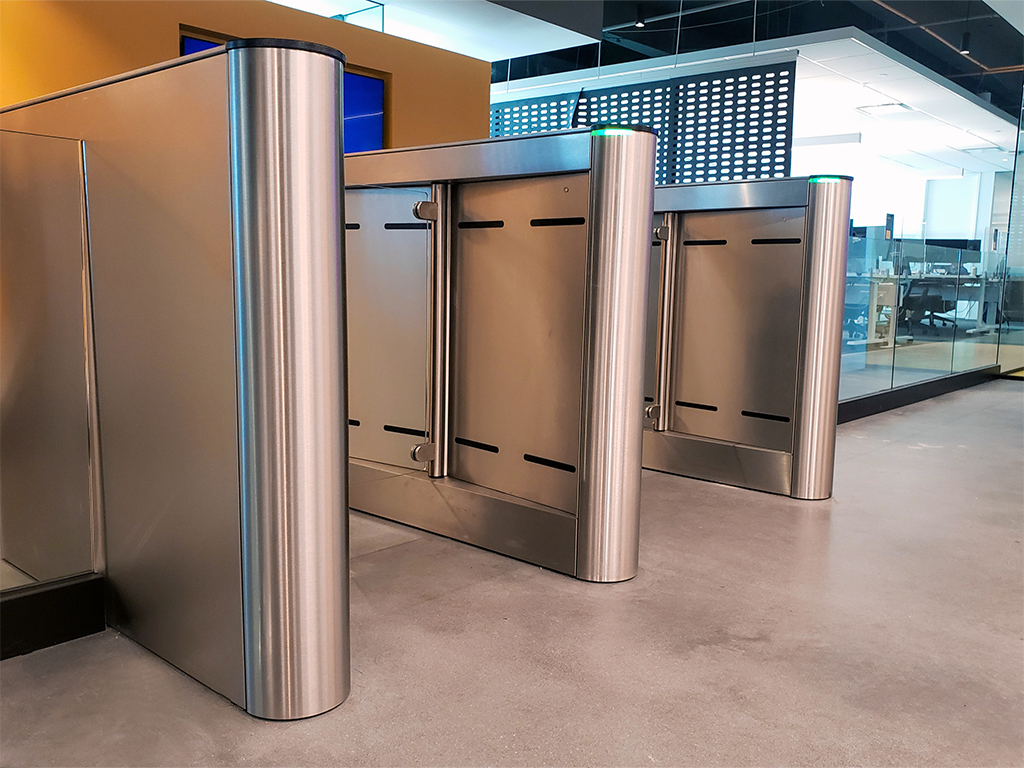

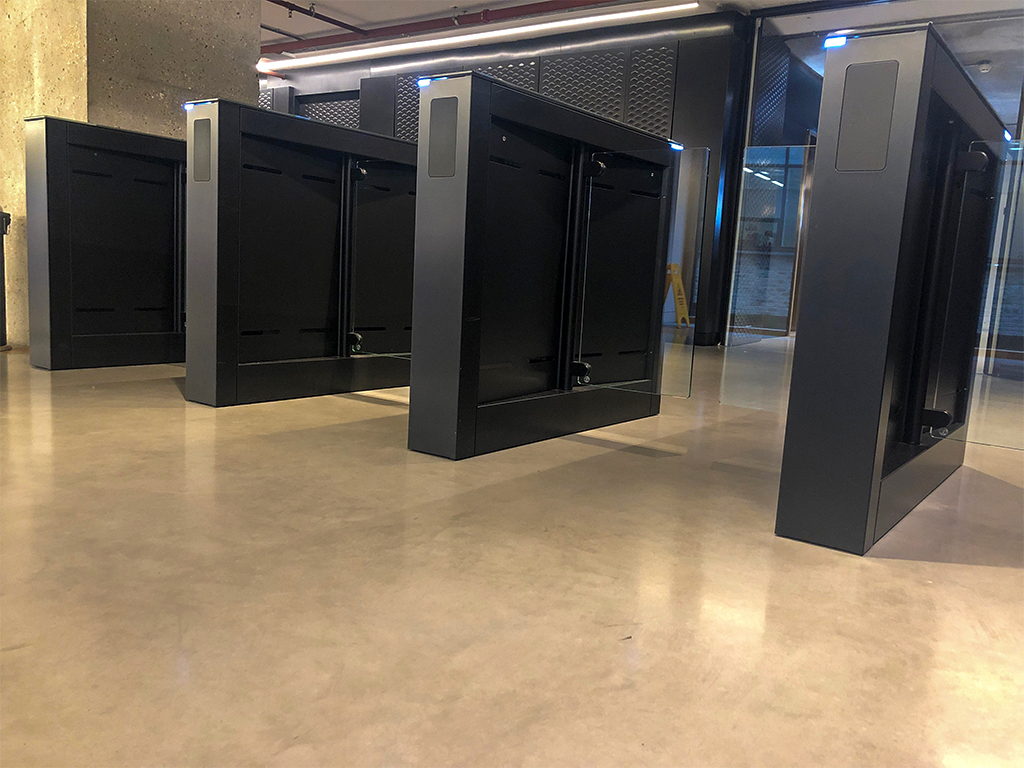

Fastlane Glassgate 250
The Fastlane Glassgate 250 turnstile offers a modern entrance control solution that integrates elevator displays and reader technologies seamlessly. It complies with UL2593 requirements and features advanced electronic processing for remote control and diagnostics.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems
- Locking brake option
Designed for Integration
The Fastlane Glassgate 250 turnstile offers a modern entrance control solution that integrates elevator displays and reader technologies seamlessly. It is now available as a UL-listed model and complies with the requirements of UL2593. This model features advanced electronic processing for remote control, diagnostics, and alarm signals, all of which can be accessed through a standard web browser.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Barriers close slowly when safety beams detect an obstruction
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Glassgate 250 |
|---|---|
| Pedestal footprint (L x W x H in inches) | 49.1 x 7.4 x 40 |
| Available lane widths (in inches) | 26.0 / 36.0 (ADA) |
| Barrier heights (in inches) | 28.7 |
| Barrier breakaway force- Friction | ≥ 60N (measured at 285mm from the shaft axis) |
| Maximum rated force – Locking brakes | ≥ 300N* (Damage to the Glass clamps and panel may occur above rated force) |
| Tailgate detection | 1/4” |
| Weight (Interlane pedestal) | 175.3lbs / 79.5kg |
| Weight (RX/TX pedestal) | 157.6lbs / 71.5kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN14179 / ANSI 97.1 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only |
| Turnstile Power Specifications | |
| Receive Gate / Transmit Gate | 24Vdc 1.25A (max) |
| Dual Gate Interlane | 2x 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 metre) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
