Description
SPEED GATE

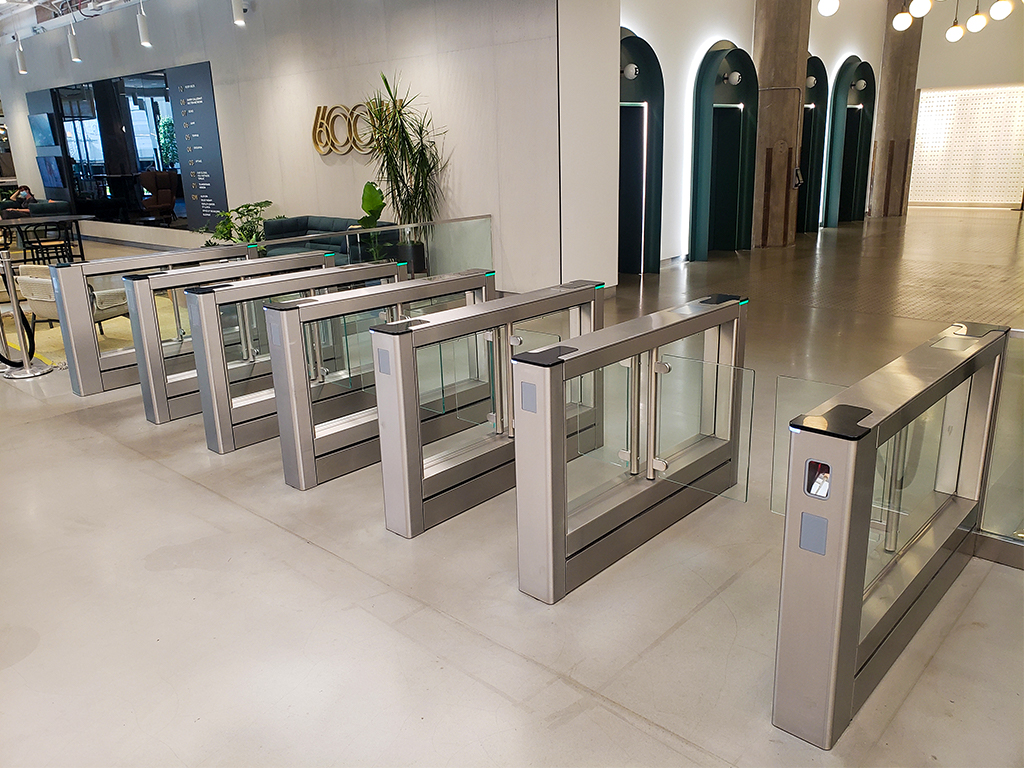

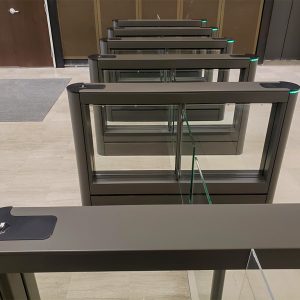

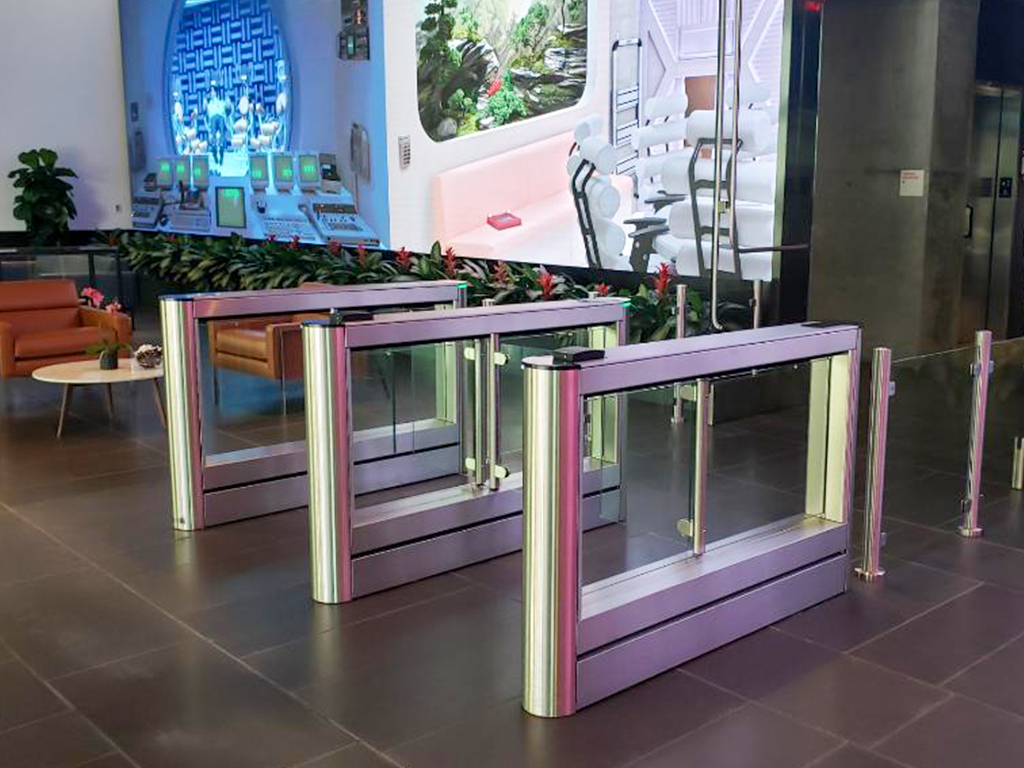

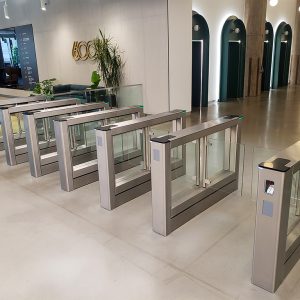

Fastlane Glassgate 155
The Fastlane Glassgate 155 turnstile elevates security with wider lane options up to 47 inches while maintaining the sleek aesthetics of the 150 model. It features our unique “sidegating” technology that detects unauthorized side-by-side entry.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems
- Locking brake option
Broaden Your Horizons
The Fastlane Glassgate 155 speed gate, based upon the aesthetics of the popular Glassgate 150 model, offers additional security and lane width options while maintaining the renowned good looks of the Fastlane range. Glassgate 155 features concealed optical systems for a sleeker look with waist height glass barriers and optional locking brakes. Lane widths up to 47 inches are achievable.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Barriers close slowly when safety beams detect an obstruction
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Glassgate 155 |
|---|---|
| Pedestal footprint (L x W x H in inches) | 59.5 x 7.4 x 38.0 |
| Available lane widths (in inches) | 26 / 36 / 43.3 / 47.2 |
| Barrier heights (in inches) | 33.2 |
| Barrier breakaway force- Friction | ≥ 60N (measured at 285mm from the shaft axis) |
| Maximum Rated Force – Locking Brakes | ≥ 300N* (the brake may slip above rated force, damage to the glass clamps and panel may also occur) |
| Tailgate detection | 1/4” |
| Weight (Interlane pedestal) | 77kg / 169.8lbs |
| Weight (RX/TX pedestal) | 69kg / 152.2lbs |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN14179 / ANSI 97.1 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only) |
| Turnstile Power Specifications | |
| Receive Gate / Transmit Gate | 24Vdc 1.25A (max) |
| Dual Gate Interlane | 2x 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 metre) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
