Description
SPEED GATE

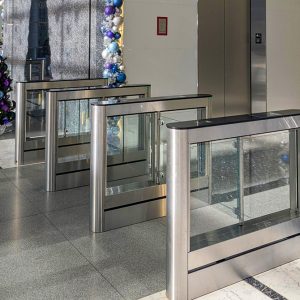

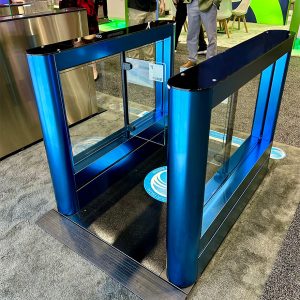

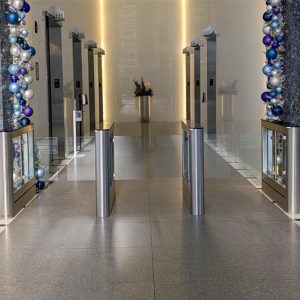

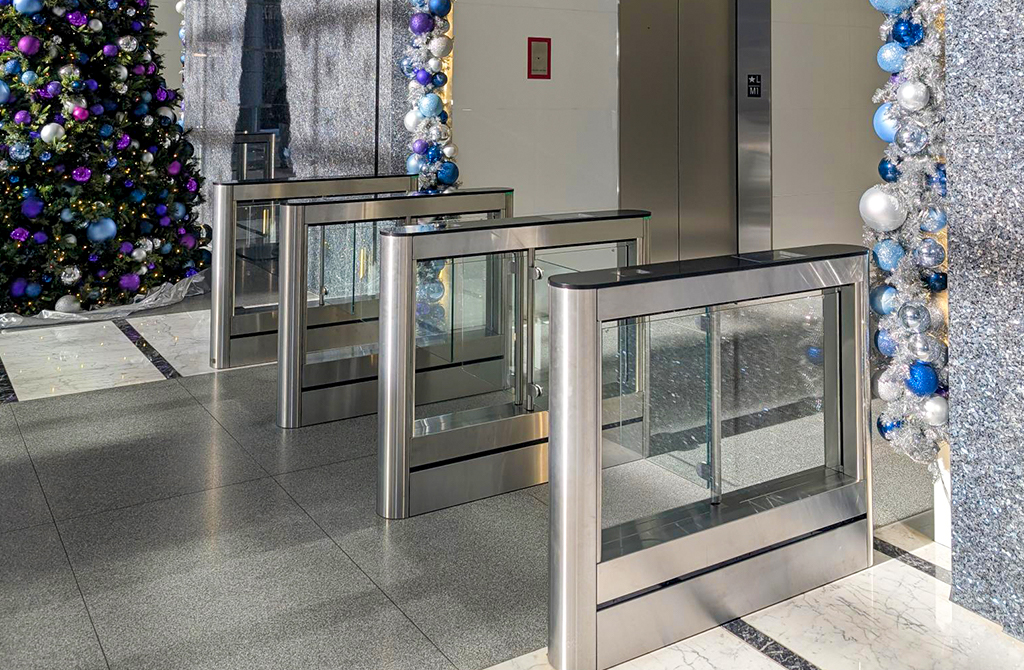

Fastlane Glassgate 150 Plus
The Glassgate 150 Plus enhances the 150 original design with a windowless beam matrix and advanced electronic processing for remote control and diagnostics via a web browser. It maintains the trusted features of the Fastlane range while allowing for flexible 39.4” lanes.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems
Streamlined Entrance Control
Introducing the Fastlane Glassgate 150 Plus speed gate, the ideal solution for stylish entrance control across various industries. Building on the popular Glassgate 150 design, it features a windowless beam matrix with advanced electronic processing for remote control and diagnostics via a web browser. This system retains all the trusted features of the Fastlane range while offering added flexibility for wider 39.4” lanes when needed.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Barriers close slowly when safety beams detect an obstruction
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Glassgate 150 Plus |
|---|---|
| Pedestal footprint (L x W x H in inches) | 48.6 x 6.6 x 39.0 |
| Available lane widths (in inches) | 26.0 / 36.0 / 39.4 |
| Barrier heights (in inches) | 33.4 |
| Barrier breakaway force | ≥ 60N (measured at 285mm from the shaft axis) |
| Tailgate detection | .25” |
| Weight (Interlane pedestal) | 125lbs / 56.5kg |
| Weight (RX/TX pedestal) | 103lbs / 46.5kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass EN12150 |
| Center Glass Panel material | 8mm Toughened Safety Glass (Heat Soaked) EN14179 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only |
| Turnstile Power Specifications | |
| Receive Gate / Transmit Gate | 24Vdc 1.25A (max) |
| Dual Gate Interlane | 2x 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 metre) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
