OPTICAL TURNSTILE
Fastlane Compact
The Fastlane Compact is a barrier-free optical turnstile that couples our smallest footprint with advanced security. Its intelligent beam system detects unauthorized access while allowing smooth passage with personal items.
- Industry-leading speed of 1 person/second
- Detects tailgaters as close as 1/4” (5mm) apart
- Compatible with Access Control, CCTV, and building management systems
The Future of Secure Entrance Control

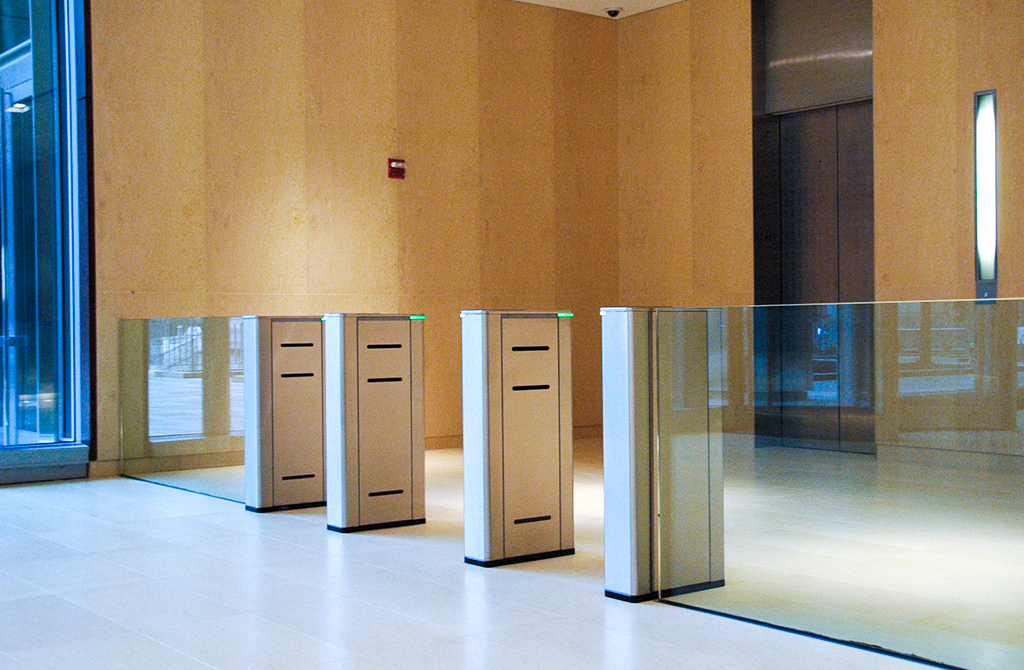

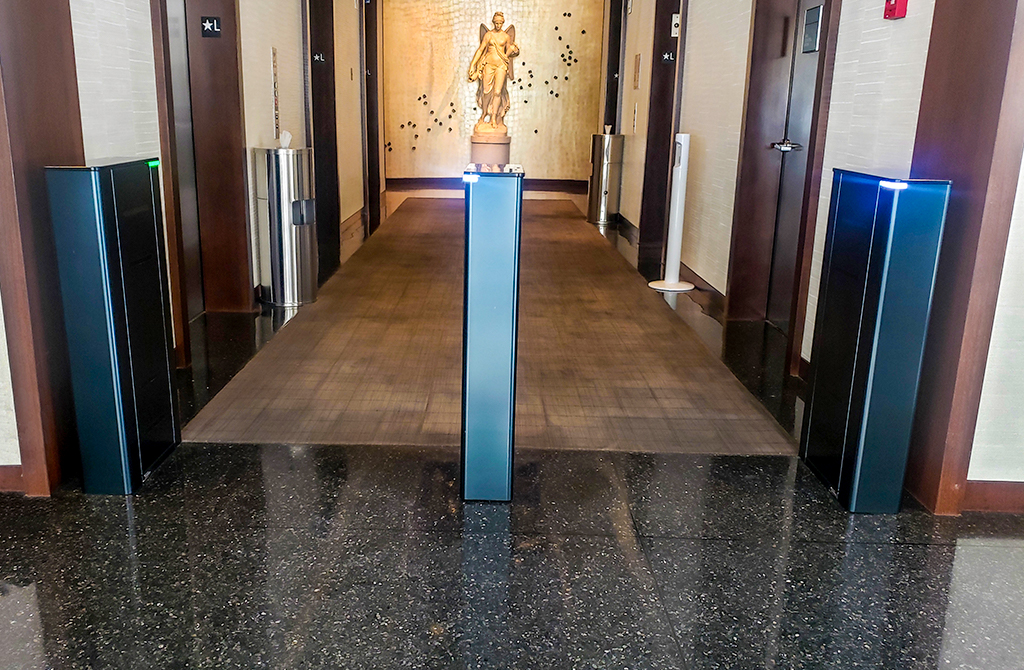

The Fastlane Compact optical turnstile delivers access control in a minimal footprint. Its advanced distributed intelligence system combines multiple beam paths with sophisticated algorithms to instantly detect unauthorized entry and tailgating attempts, while seamlessly allowing authorized users to pass with their personal items. This optical turnstile creates an elegant, open entrance that clearly delineates secure and public spaces.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as 1/4” (5mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- No barriers enable quick, safe movement for all during emergencies
- An intuitive interface automatically guides entry and exit
- The system ensures fast access for authorized users
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Fastlane Compact |
|---|---|
| Pedestal footprint (L x W x H in inches) | 17.6 x 6.6 x 38 |
| Available lane widths (in inches) | 26.0 / 36.0 (ADA) |
| Tailgate detection | 1/4” |
| Weight | 55lbs / 25kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 105kW hours per annum |
| Ingress protection | IP40 (Internal building applications only) |
| Turnstile Power Specifications | |
| Per lane | 24Vdc 0.5A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 0.5 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 75 – 100 dB (93dB at 1 meter) |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
