Description
DOOR DETECTIVE

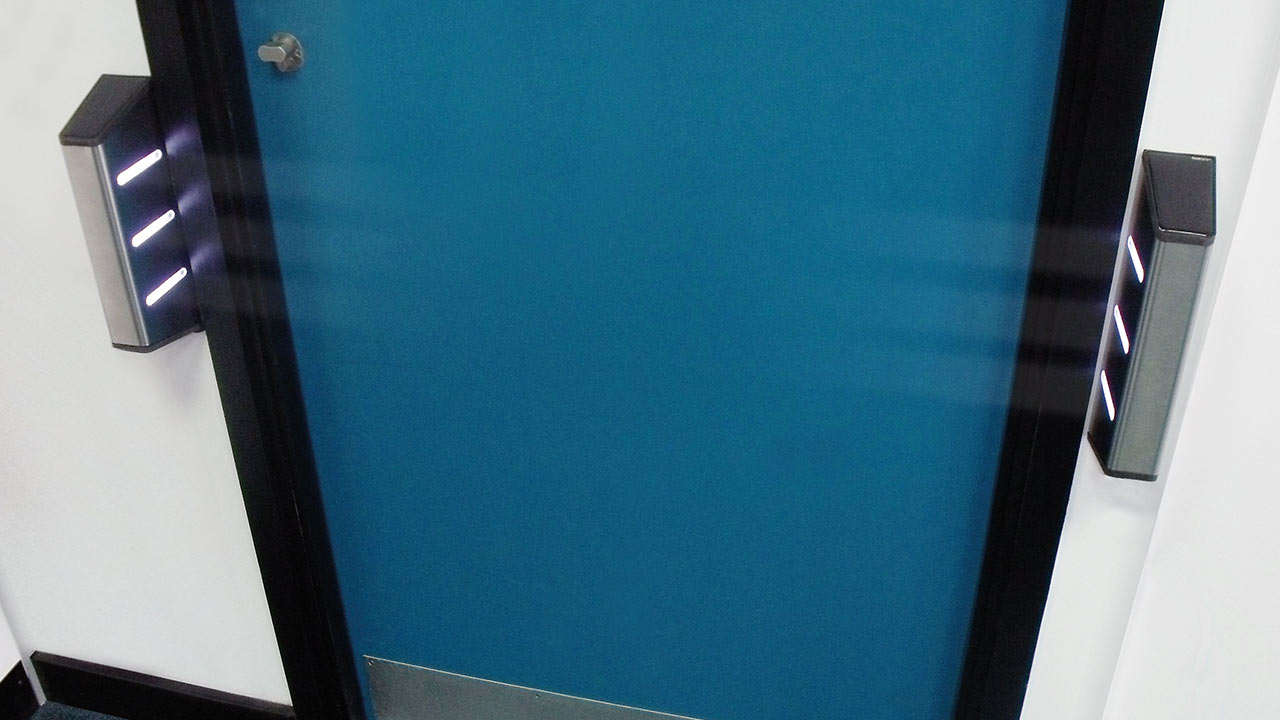

Door Detective Compact
The Door Detective Compact transforms doorways into intelligent checkpoints, automatically blocking and reporting unauthorized access while eliminating awkward confrontations - whether doors are open or unlocked.
- Network of 6 pulsed multi-infrared beams for intelligent traffic monitoring
- Real-time authorization and violation tracking
- Precision tailgate detection within 1.97” proximity
Install. Secure. Detect.
The Door Detective Compact transforms doorways into sophisticated security checkpoints. This powerful monitoring system automatically blocks unauthorized entry, eliminating the need for uncomfortable confrontations. By creating intelligent access points that maintain constant vigilance, the Door Detective guarantees security whether doors are open or locked. The system instantly detects and flags any unauthorized access attempts, providing uncompromising protection 24/7.
Advanced Security Technology
Utilizes a sophisticated detection systems to transform any doorway into an intelligently monitored security point.
- Network of 6 pulsed multi-infrared beams for intelligent traffic monitoring
- Real-time authorization and violation tracking
- Precision tailgate detection within 1.97” proximity
Functionality
Door Detective monitors and manages access by working in harmony with your existing security infrastructure to enforce entry policies.
- Validates single-person entry for each authorization
- Monitors bi-directional movement through doorways
- Maintains security even when doors are physically open
- Provides instant feedback of traffic patterns and violations
Security Benefits
By automating entrance monitoring, Door Detective enhances your security investment while removing the human burden of enforcement.
- Provides consistent 24/7 entrance monitoring
- Remote monitoring and configuration via web interface
- Interfaces with CCTV and access control systems
- Functions as a virtual security guard
- Strengthens anti-passback policy enforcement
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Door Detective Compact |
|---|---|
| Dimensions (D x W x H in inches) | 4.3 x 2.4 x 11.9 |
| Optical Performance | Up to 88.6” (2250mm) |
| Tailgate detection | 1.97” |
| Weight (Boxed Unit) | 8.8lbs / 4kg |
| Infrared optical matrix – pulsed beam paths | 6 |
| Infrared wavelength nm | 940 |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no.4), horizontal grain |
| Environmental | |
| Temperature | 5 to 50 degrees Celsius |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 31.5kW hours per annum |
| Ingress protection | IP20 (Internal building applications only) |
| Power Supply (Included) | |
| Mains power input requirement | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Rated output voltage | 12Vdc 1.25A (max) |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (AUX1) – NORMALLY OPEN momentary closing contact Visitor exit (AUX2) – NORMALLY OPEN momentary closing contact Door Sensor (DS) |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A | Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (ALR1) – NORMALLY CLOSED opening for 1 second Alarm 2 (ALR2) – NORMALLY CLOSED opening for 1 second |
| System Outputs | |
| Door Lock Relay | Relay output to be used for switching a door lock power, using a 3rd party power supply. Rated up to 24Vdc 1A |
| Status display | Multi-color LEDs for status and fault finding |
| Alarm sounder output | 80 – 90 dB |
* Due to continuous improvements, specifications are subject to change without prior notice.
