Description
DOOR DETECTIVE
Door Detective CL
The Door Detective CL seamlessly merges elegance with excellence. Its sleek acrylic and aluminum design elevates any interior while the advanced detection system delivers uncompromising security. This is where superior form meets flawless function.
- Network of 8 pulsed multi-infrared beams synchronized for detection
- Environmentally hardened optics prevent sunlight interference
- Precision tailgate detection within 1.97” proximity
Intelligent Entrance Security Redefined

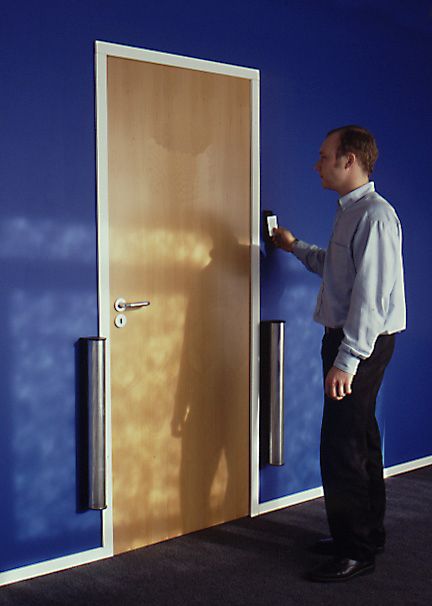

The Door Detective CL’s sophisticated infrared system creates an invisible detection field that instantly identifies tailgating attempts. With pinpoint accuracy, it monitors all entry traffic, captures unauthorized access in real-time, and seamlessly integrates with existing security protocols. This intelligent monitoring system eliminates human error by automatically detecting and tracking every person entering your secure space, ensuring no unauthorized access goes unnoticed.
Advanced Security Technology
Utilizes a sophisticated detection systems to transform any doorway into an intelligently monitored security point.
- Network of 8 pulsed multi-infrared beams synchronized for detection
- Environmentally hardened optics prevent sunlight interference
- Precision tailgate detection within 1.97” proximity
Functionality
Door Detective CL ensures smooth operation while maintaining rigorous security protocols.
- Supports multiple operating modes including card in/free exit configurations
- Monitors bi-directional movement through doorways
- Maintains security even when doors are physically open
- Provides instant feedback of traffic patterns and violations
Security Benefits
By automating entrance monitoring, Door Detective enhances your security investment while removing the human burden of enforcement.
- Provides consistent 24/7 entrance monitoring
- Remote monitoring and configuration via web interface
- Interfaces with CCTV and access control systems
- Functions as a virtual security guard
- Strengthens anti-passback policy enforcement
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Door Detective CL |
|---|---|
| Dimensions (D x W x H in inches) | 4.0 x 2.8 x 26.2 |
| Optical Performance | Up to 98.4” (2500mm) |
| Tailgate detection | 1.97” |
| Weight (Boxed Unit) | 11.5lbs / 5.2kg |
| Infrared optical matrix – pulsed beam paths | 8 |
| Infrared wavelength nm | 940 |
| Materials | |
| Enclosure material: Tube Back panel Caps |
Clear acrylic Black painted aluminum Clear frosted acrylic |
| Environmental | |
| Temperature | 5 to 50 degrees Celsius |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 31.5kW hours per annum (excluding lock power) |
| Ingress protection | IP20 (Internal building applications only) |
| Power Supply (Included) | |
| Mains power input requirement | 100-240Vac, 47-63Hz, 5A fused spur connection |
| Rated output voltage | 12Vdc 1.25A (max) |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (AUX1) – NORMALLY OPEN momentary closing contact Visitor exit (AUX2) – NORMALLY OPEN momentary closing contact Door sensor (DS) – NORMALLY CLOSED |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 24Vdc 1A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm (ALR) – NORMALLY CLOSED opening for 1 second Door contact mimic – NORMALLY CLOSED Door Lock (LK) – Selectable as detailed in the configuration manual (Normally Closed for maglock operation and Normally open for strike operation). Rated 24Vdc 1A max. |
| System Outputs | |
| Wait timer | Adjustable from 6 to 12 seconds as detailed in the configuration manual |
| Wait timer between Visitor Access | Adjustable from 3 to 7 seconds as detailed in the configuration manual |
| Status display | Tri-color 8mm LEDs (Red, Amber and Green) |
| Alarm sounder output | 80 – 90 dB |
* Due to continuous improvements, specifications are subject to change without prior notice.
