ACCESS GATE
Fastlane Intelligate 300

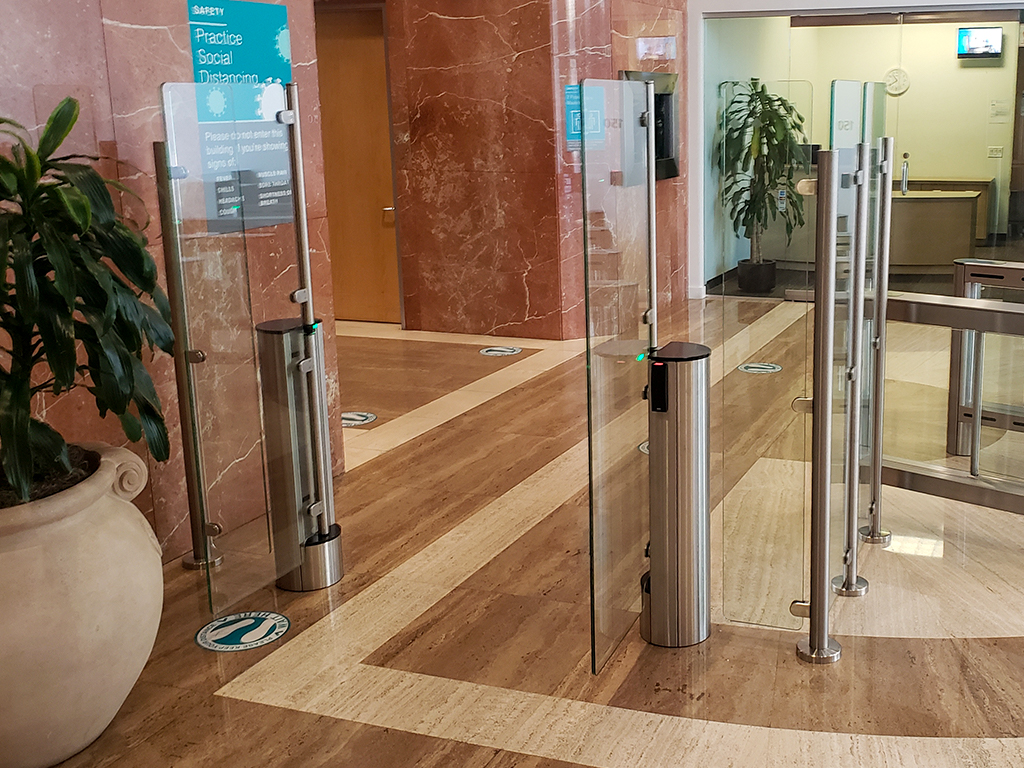

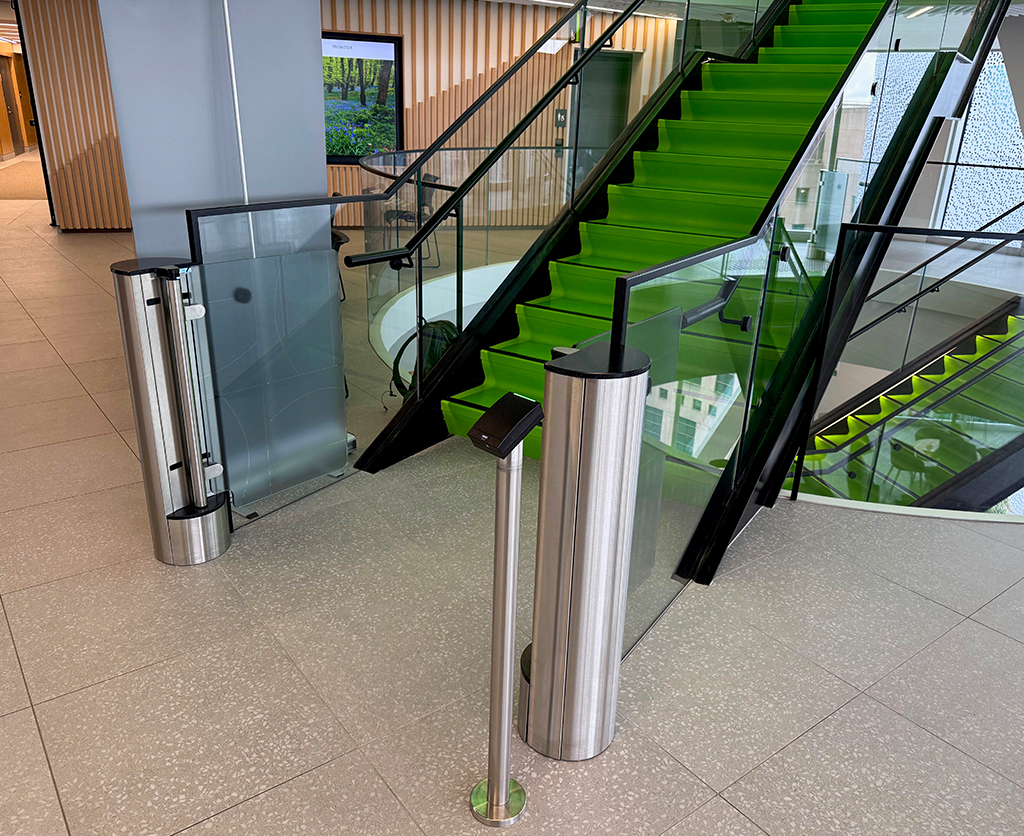

The Fastlane® Intelligate 300 from Smarter Security is an ADA-compliant motorized access gate that sits beside Fastlane turnstiles. It gives wheelchairs, delivery carts, and oversized items a credential-controlled lane, and its infrared detection flags anyone who follows an authorized user through. Lanes come 39.3″ (1000 mm), 47.2″ (1200 mm), or 55.1″ (1400 mm) wide.
- Detects tailgaters as close as .39” (10mm) apart
- Compatible with Access Control, CCTV, and building management systems
Setting the Standard
The Fastlane Intelligate 300 delivers a bi-directional motorized entrance solution with dual swing glass barriers and advanced optical monitoring. Its extra-wide design ensures seamless access for all users – from wheelchair users to delivery personnel – while maintaining security and elegant aesthetics.
Advanced Security Technology
Utilizing cutting-edge optical detection technology for unparalleled accuracy and safety.
- High-resolution infrared matrix
- Detects tailgaters as close as .39” (10mm) apart
- Can differentiate between body mass and smaller objects
User-Friendly Design
Engineered for quick acceptance and smooth operation in high-traffic areas.
- Barriers close slowly when safety beams detect an obstruction
- Automatic local alarm for unauthorized entry
- Fire alarm integration for emergency egress
Flexible Integration
Seamlessly connects with existing building systems for comprehensive security management.
- Compatible with Access Control, CCTV, and building management systems
- Fastlane Connect™ ethernet communications for remote control and diagnostics that enables Web-based turnstile control from any PC, tablet, smartphone, or from Fastlane’s Multilane Controller.
- Optional visitor management input
Sustainability
- LEED Preferred Manufacturing
- Low Voltage/Low Power Consumption
- ISO 14001:2015 Accreditation
| Product Features | Fastlane Intelligate 300 |
|---|---|
| Pedestal footprint (L x W x H in inches) | 9.4 x 38 (239 x 965 mm) |
| Available lane widths (in inches) | 39.3 / 47.2 / 55.1 (998 / 1199 / 1400 mm) |
| Barrier heights (in inches) | 38 / 47.2 / 59.1 / 66.9 / 70.9 (965 / 1199 / 1501 / 1699 / 1801 mm) |
| Barrier breakaway force – Friction | ≥ 60N (measured at 285mm from the shaft axis) |
| Maximum rated force – Locking brakes | ≥ 300N* (Damage to the Glass clamps and panel may occur above rated force) |
| Tailgate detection | .39” (10mm) |
| Weight (RX/TX pedestal) | 52.9lbs / 24kg |
| Materials | |
| Enclosure material | Stainless steel 304, 240 grit (satin no. 4), horizontal grain |
| Barrier material | 10mm Toughened Safety Glass BS EN12150 12mm Toughened/Laminated for 1800mm Tall option BS EN12150 & BS EN14449 |
| Environmental | |
| Temperature | 5 to 50 degrees centigrade |
| Relative humidity | 5 to 95% non-condensing |
| Energy consumption per lane | 421kW hours per annum |
| Ingress protection | IP20 (Internal building applications only) |
| Turnstile Power Specifications | |
| Receive Gate / Transmit Gate | 24Vdc 1.25A (max) |
| 24Vdc Power Supply (Included) | |
| Enclosure | Black mild steel, wall mounted, 13” x 8” x 5.5” (330 x 203 x 140 mm) |
| Modules | Dual or quad 24Vdc 2.5A overcurrent fold back |
| Input voltage | 100-240Vac, 60/50Hz, 5A fused spur connection |
| Outputs | 24 V DC, 60 W, 1.25 A |
| Access Control Inputs | |
| Voltage-free contact; 1mA current sense |
Entry & Exit request (NORMALLY OPEN closing for 1 second) |
| Screw terminal connector | Visitor entry (NORMALLY OPEN momentary closing contact) |
| Max conductor CSA 16AWG/ 1.5mm2 | Visitor exit (NORMALLY OPEN momentary closing contact) |
| Fire panel integration input | Opto-coupled Input12-24Vdc @ 25mA nominal |
| Ethernet connection | RJ45 TCP/IP Port |
| Access Control Outputs | |
| Voltage-free contact; Contact Rating 28Vdc 0.5A |
Entry & Exit monitor (NORMALLY CLOSED opening for 1 second) |
| Screw terminal connector | Alarm 1 (NORMALLY CLOSED opening for 1 second) |
| Max conductor CSA 16AWG/ 1.5mm2 | Alarm 2 (NORMALLY CLOSED opening for 1 second) |
| System Outputs | |
| Turnstile status display | RGB LED diffused through 10mm high clear frosted acrylic |
| Alarm sounder output | 98dB approx. |
*Fastlane logo present on left-most pedestal base. Removal available upon request.
* Due to continuous improvements, specifications are subject to change without prior notice.
Download the assets and information you need to keep your project moving.
What to Know
Fastlane Intelligate 300 questions, answered
What architects, integrators, and security teams ask before adding an accessible lane beside Fastlane turnstiles.
What is the Fastlane Intelligate 300?
The Fastlane Intelligate 300 is a bi-directional motorized access gate with dual swing glass barriers and optical tailgate detection. Its extra-wide lanes, 39.3″ (1000 mm), 47.2″ (1200 mm), or 55.1″ (1400 mm), fit wheelchairs, mobility devices, and delivery carts, with barrier heights up to 70.9″ (1800 mm).
Which access gate should go beside optical turnstiles?
A motorized gate on the same access control system, wide enough for wheelchairs and carts. In a Fastlane lobby from Smarter Security, that is the Intelligate 300 or the Passgate 300. The Intelligate 300 adds tailgate detection and lanes up to 55.1″ (1400 mm). The Passgate 300 uses a single pedestal where floor space is tight.
How does the Intelligate 300 differ from the Passgate 300?
Both are motorized swing glass access gates. The Intelligate 300 adds optical tailgate detection that catches people as close as .39″ (10 mm) apart, and it offers lanes up to 55.1″ (1400 mm) versus 39.3″ (1000 mm) for the Passgate 300. That makes it the better fit for busy accessible entry points that need both detection and extra width.
Is the Intelligate 300 ADA compliant?
Yes. All three lane widths exceed the 32″ (813 mm) ADA minimum clear width, and the gate gives users audio and visual feedback.
What lane widths are available for the Intelligate 300?
Three: 39.3″ (1000 mm), 47.2″ (1200 mm), and 55.1″ (1400 mm). Each fits wheelchair users, people with mobility devices, and staff moving large deliveries or equipment.
What systems does the Fastlane Intelligate 300 integrate with?
Access control, CCTV, and building management systems. Fastlane Connect™ ethernet communications give browser-based remote control and diagnostics, with optional visitor management input and fire panel integration for emergency egress.
